Wirecut EDM Service
Classic Tool & Die Inc. is not just a preferred metal stamping die supplier — it is also a valuable source for customers with wire-cut EDM needs.

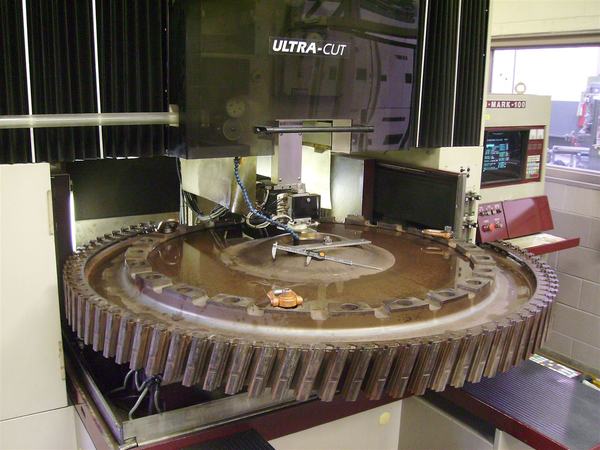

In 1984, Classic Tool & Die pioneered wire-cut EDM service in Southern Ontario. Today we can accommodate oversized work pieces on the Hitachi 8Q, which company materials describe as one of the largest wire EDMs in North America.
Dies · Molds · Details · Prototypes · Low/high volume production
Give us any work piece of conductive material, soft or hardened, including carbide and titanium. We cut in two or four axis with a Z height of up to 20″, and generate cutter paths from customer CAD data, a print, or a part digitized from a sample.
Give us your biggest, we’ll give you our best.
Machine Capacities
| Machine | Travel |
|---|---|
| Hitachi 8Q | 41″ × 60″ × Z 20″ |
| Charmilles Robofil 690 | 39.5″ × 54.5″ × 16″ — first 690 commissioned in North America |
| Makino SP43 | 17.7″ × 12″ × 12.6″ |
| Elox P series | 25″ × 30″ × 8″ |
Email your CAD data to Wire EDM for an exact estimate.
